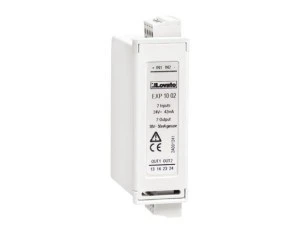

Moduł dodatkowy, 2 wejścia cyfrowe i 2 wyjścia półprzewodnikowe (statyczne) EXP1002

The EXP modules for Lovato plug in expandable products are designed and developed to enhance the functions of connectivity, I/O, memory and analysis of the device to which it is connected.
The EXP10 02 includes 2 isolated digital input and 2 isolated static output protected and independent of each other. At the input connector side, also an isolated continuous power supply is also available for the connection of various digital input types, such as: contact, NPN and PNP open collector and active sensors with digital output.

These modules can be connected to a LOVATO Electric device equipped with EXP slot. The module connection will be done simply by plugging it into the base device. At the power up of the system, the units will be automatically recognized.
The EXP parameter setup will be done directly from the proper device menu in an easy way.

DESCRIPTION
– Compact size
– Direct plug in on the base device
– 2kVrms of insulation from the base module on the input side
– 4kVrms of insulation from the base module on the output side
EXP10 02
– 2 isolated digital inputs of various types:
• contact, NPN or PNP open collector and digital output sensors
– Isolated 24VDC/1W supply available as:
• connection for various input types
• power supply of the sensors (see note below wiring diagram)
– Auxiliary power supply protected from overload and shortcircuit
– 2 isolated protected bidirectional OPTOMOS SSR static output, each one independent
– 40VDC or 30VAC maximum voltage and up to 55mA of current capability.
