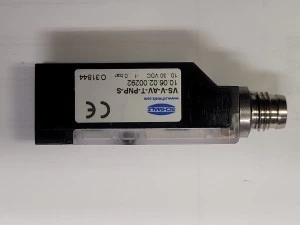

Czujnik wyłącznika próżniowego 10.06.02.00292 VS‑V‑AV‑T‑PNP M8‑4 S
- Producent:SCHMALZ SP. Z O.O.
- Indeks producenta:10.06.02.00292
- Indeks TIM:0001-00015-05636
- Kategoria:Sygnalizatory optyczne
- Ocena:
Cena:
| Atrybut | Wartość |
|---|---|
| Measured medium | Non-aggressive gases; dry, oil-free air |
| Measuring range | -1,0 ... 0,0 bar |
| Overpressure resistance | 5 bar |
| Repeatability | ± 1% of full-scale value |
| Hysteresis | Fixed: approx. 20 mbar |
| Inputs/outputs | EMPTY VALUE |
| Switching capacity (max) | 200 mA |
| Indication | LED |
| Electrical connection | Male connect M8, 4 pole |
| Voltage | 10-30V DC |
| Current consumption | 20 mA |
| Protection type IP | IP 40 |
| Temperature influence | ± 3% of full-scale value |
| Operating temperature | 0 ... 60 °C |
| Weight | 6 g |
| Atrybut | Wartość |
|---|---|
| B | 10 mm |
| G1 | M8-M |
| H | 16,40 mm |
| L | 41,20 mm |
| L1 | 48 mm |
